UNITED STATES / CNC TURNING / SMALL-BATCH PRODUCTION
Precision components for robotic arms.
A family of machined mechanical parts for a US customer.
Robotic-arm mechanical components / Small-batch production
“High precision, good quality.”
Customer feedback translated from the supplied project record.
Precision and timeframe are reported case figures. The source does not identify the controlled dimensions, inspection method or a separate shipping date.
01 / ORIGINAL PRODUCT PHOTOGRAPHS
A coordinated family of turned components.
Small-batch production

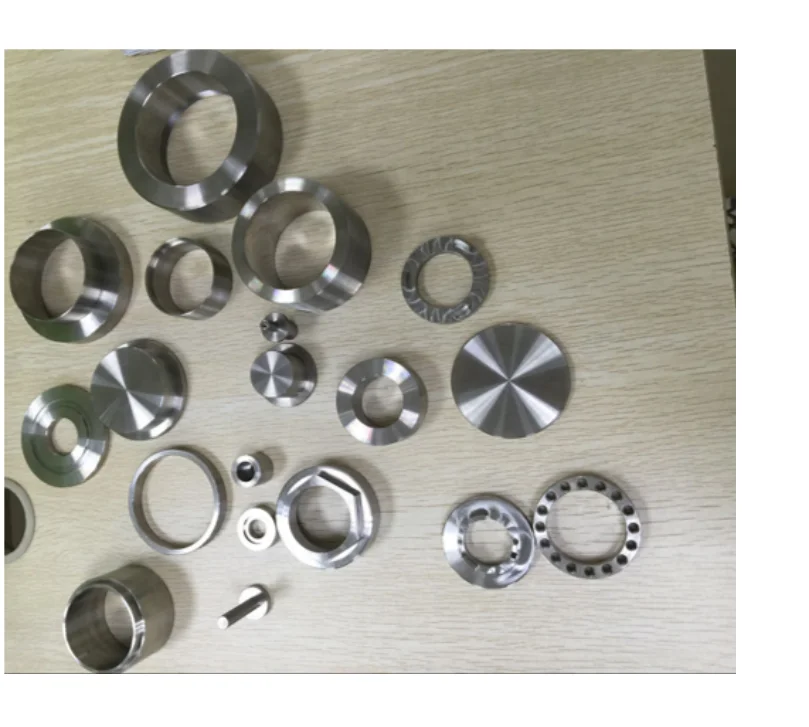

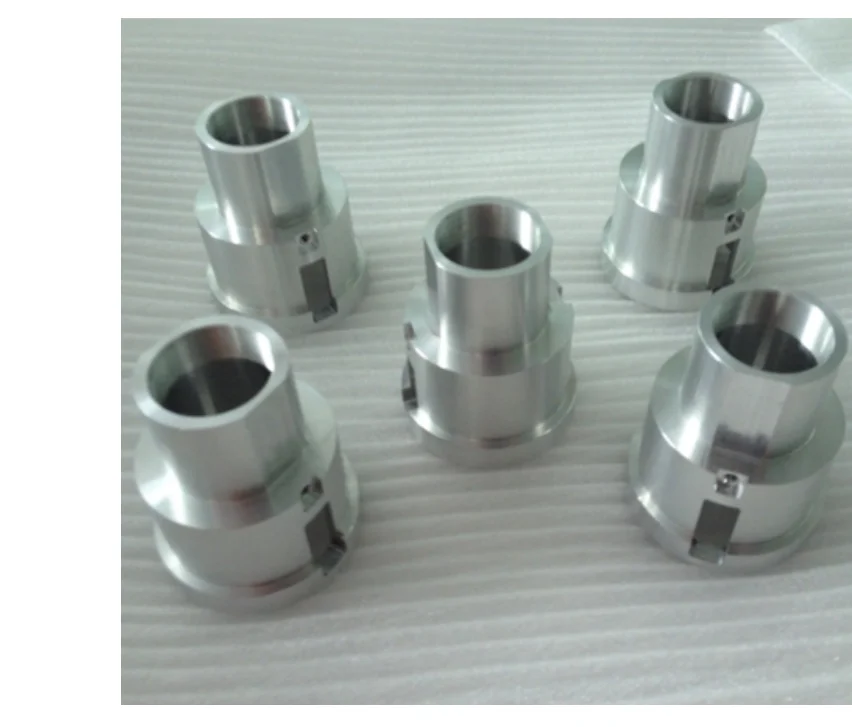

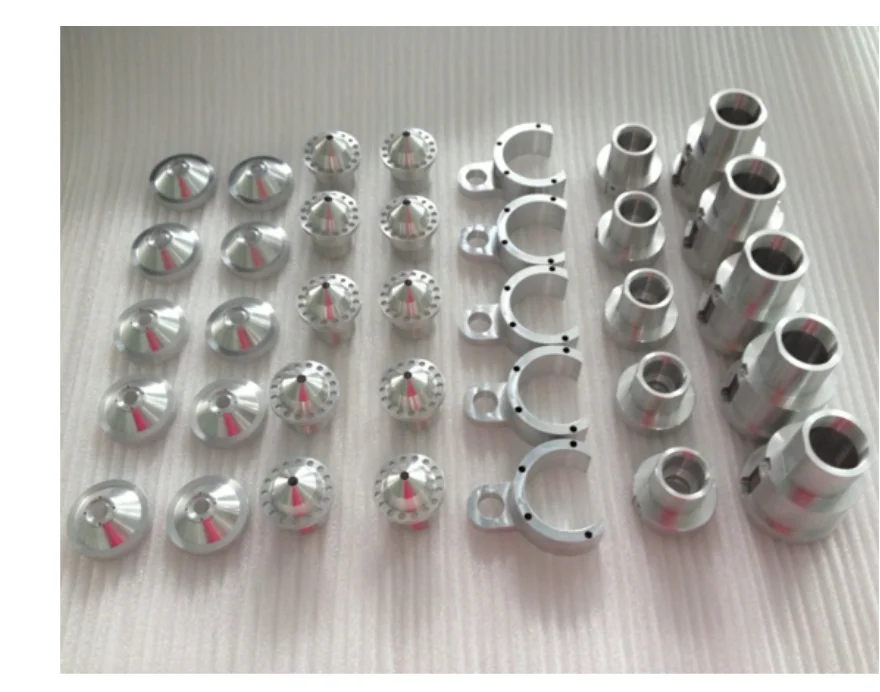

The original case identifies robotic-arm mechanical parts produced in a small batch. Repeated geometries are arranged by part type in the supplied photograph.
The photographs show part geometry and appearance; exact assembly positions and robot models are not specified.
Images: details from the original MAKER-1 slide. Material grade, finish specification and individual part names were not supplied.
02 / REAL ROBOTIC WORK ENVIRONMENTS
Where robotic arms meet production.

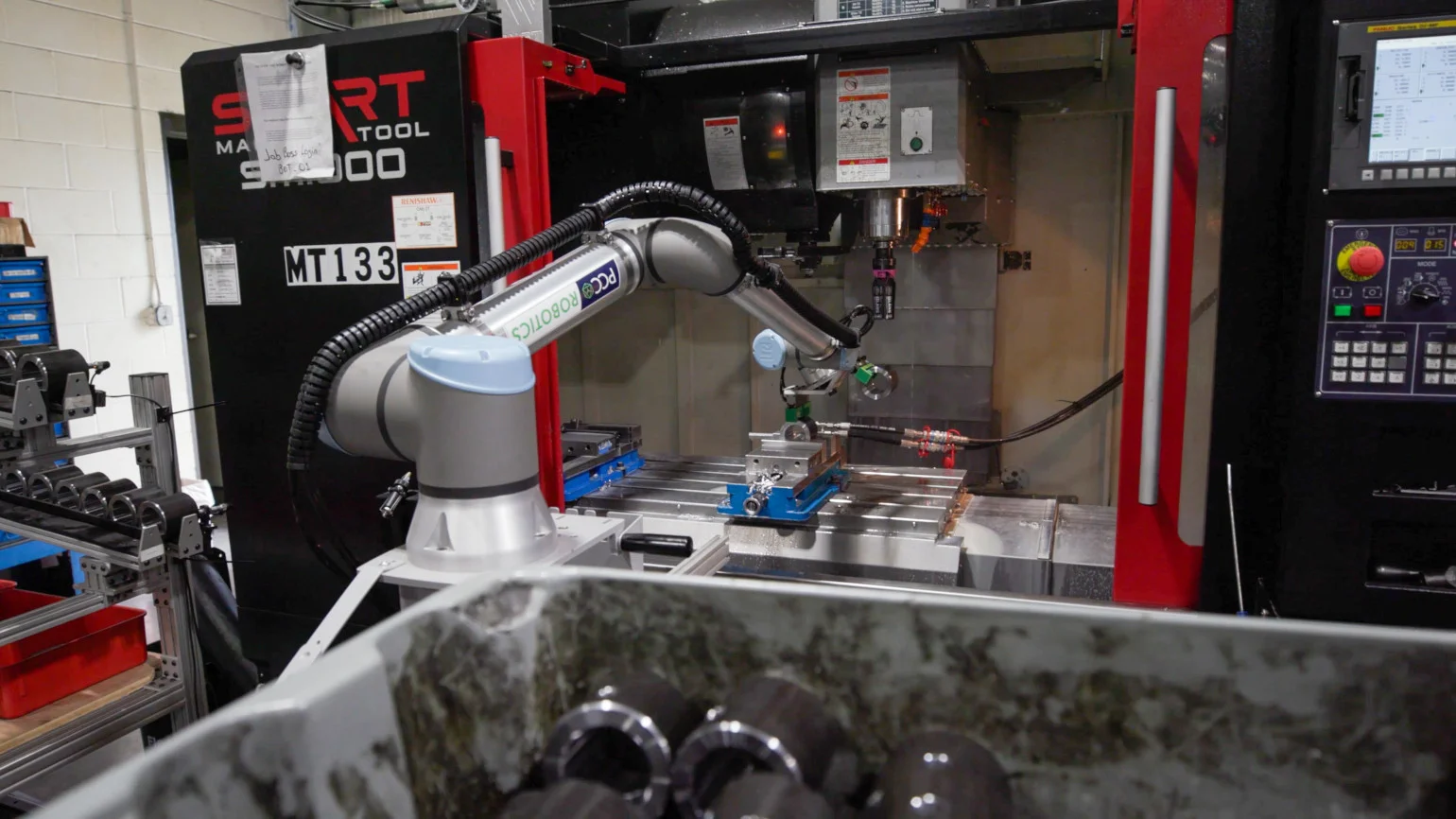

WST Fab / United States
Universal Robots documents a UR10e machine-tending cell integrated by PCC Robotics, including tooling, fixtures and part staging.
Photo and source: Universal Robots — WST Fab case story

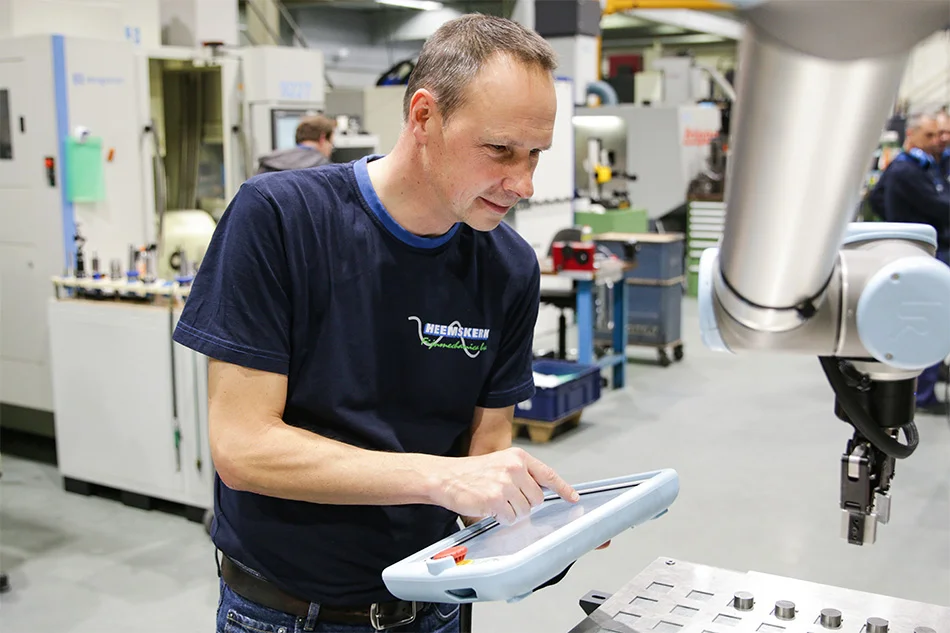

Heemskerk / Netherlands
An operator uses a robot teach pendant. The official case describes UR cobots loading CNC machines and cleaning workpieces.
Photo and source: Universal Robots Heemskerk case story
Third-party application references. These sites and robot brands are not identified as MAKER-1 customers, and the pictured robots are not confirmed to contain the supplied components.
03 / SUPPORT FOR SIMILAR ROBOTICS PROJECTS
Review the interface. Plan the process.
MAKER-1 can join development early with DFM input for mechanical structures, robotic-arm components and assembly interfaces.
Fits and reference surfaces
Define critical bores, mating diameters and datums.
Geometric requirements
Review runout and alignment where function requires them.
Machining access
Consider bore depth, thin sections and workholding.
Assembly details
Review holes, edge breaks and fastener clearances.
Suggested review topics for future projects; not an inspection report or a record of engineering changes made in this case.
Manufacturing capabilities
CNC precision machining | 3D printing Vacuum casting | Sheet metal fabrication
CNC turning is the process stated for this case. Other capabilities can support suitable structures, covers, brackets and prototypes after design review.
Sources & project scope
Project facts and photographs: MAKER-1 supplied US robotic-arm mechanical parts case slide. Customer name, drawing specifications and dimensional inspection records were not provided.
Application images: Universal Robots / WST Fab and Universal Robots / Heemskerk. Accessed 10 September 2026. Third-party project outcomes are not attributed to MAKER-1.
Discuss your project: share CAD files, quantities and critical requirements.
