SHEET METAL SERVICE
Precision sheet metal — holes line up, bend springback calculated.

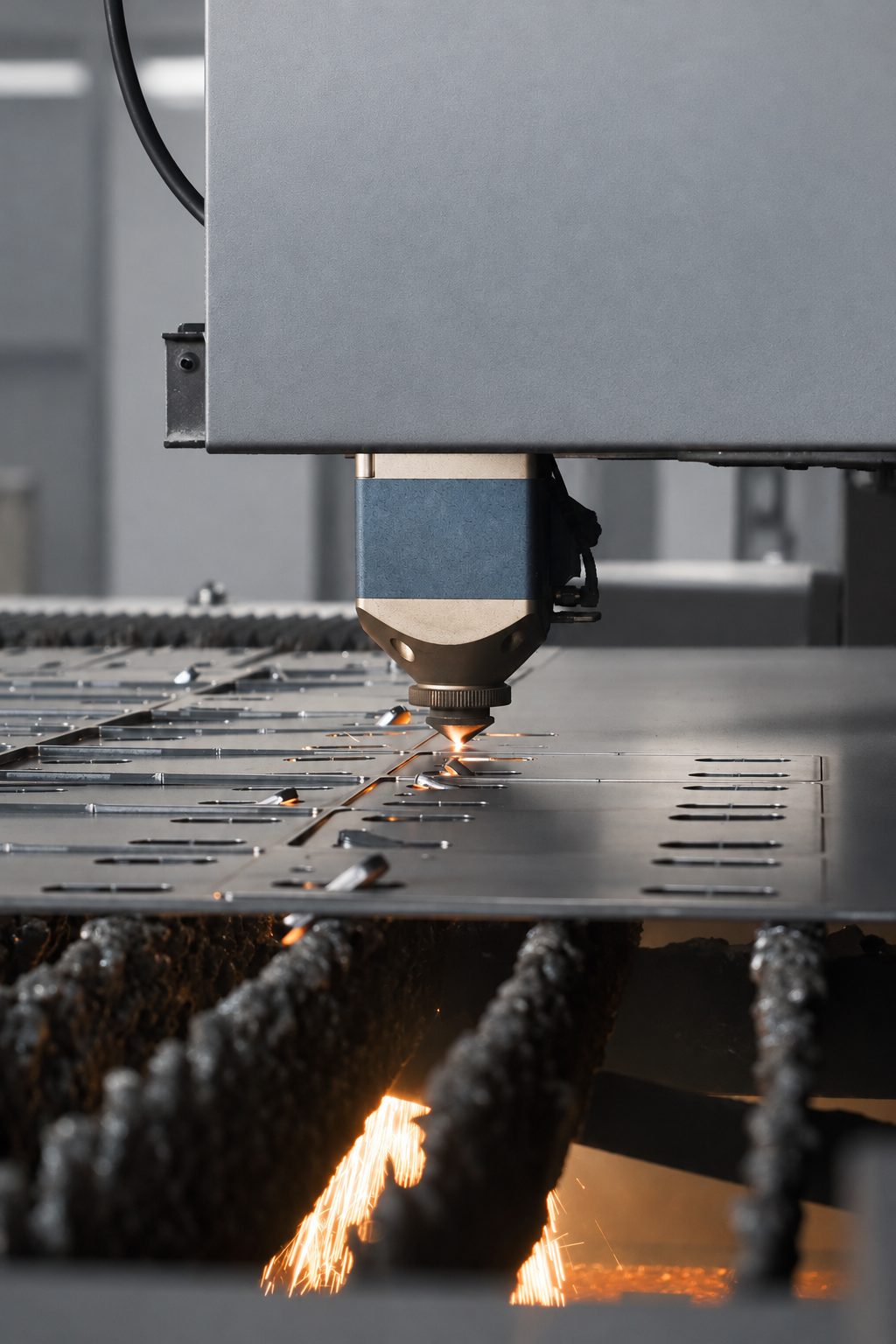

Sheet-metal problems rarely start with cutting; they start with bend springback and accumulated hole-position error. Fiber laser cutting keeps section quality and ±0.1 mm-class blanking tolerance; CNC press brakes with angle compensation and a dedicated bend-tool library keep multi-bend hole patterns within drawing tolerance. Prototypes and production share one parameter set, so first-piece quality repeats.
Cut tol.Laser ±0.1 mm (un-dimensioned per GB/T 1804-m)
Bend tol.Angle ±0.5°, dimension ±0.1–0.2 mm
ThicknessSteel/SS 0.5–20 mm, Al 0.5–10 mm; bed 3000×1500 mm
Min. radiusCR 1t, SS 1.5–2t, Al 1.5t
Best for · equipment housings, racks & enclosures, brackets/frames, panels & structural parts
ONE-STOP
No third-party ping-pong — welding, finishing, printing, in-house end to end.
Blanking, bending, punching, tapping, welding, grinding, surface finishing, screen-printing/laser marking, assembly — all on in-house lines, so semi-finished parts never travel between suppliers. Each avoided transfer means less handling damage and less waiting; one team owns schedule and cosmetic quality to the end, and one responsible party when issues arise.
WeldingTIG/MIG/laser/robotic weld, seam ground flush or left textured
FinishPowder coat, baking enamel, anodizing, SS passivation/brushing, plating, bead blast
MarkingScreen print, laser marking, UV print, nameplate riveting
Best for · complete equipment housings, cabinet assemblies, finished cosmetic parts at scale
PROTOTYPING & FLEXIBILITY
No stamping, no tooling — revising a sample costs nothing.
Sheet-metal samples and low volumes run on laser cutting + CNC bending, skipping the high cost of stamping tools: a design revision is a program change, not a new die. Once the design is frozen, switch to stamping to cut cost — trial-and-error spend is saved up front. We also scale continuously from 1 piece to 200 pcs monthly, carrying sample parameters to the production line.
Sample leadSamples 3–5 days; low volume 7–15 days
MOQMOQ 1 piece, no tooling fee
BatchMonthly capacity [200] pcs; sample-to-volume parameter carry-over
Best for · design validation, low-volume trial runs, show units, high-mix low-volume orders
HIGH-END NICHE
Clean, fingerprint-free, flat — the bar for high-end equipment sheet metal.
Semiconductor and medical equipment demand far more than ordinary enclosures: large-panel flatness, scratch- and fingerprint-free handling, stainless passivation and cleanliness control, weld-chamber airtightness and deformation control, and traceable material certificates. We work to cleanroom flow standards and deliver clean, protected parts with material certificates and inspection records — having served case count semiconductor and medical equipment customers.
FlatnessLarge panel ≤1.0 mm/m, with sizing process & gauge
MaterialSUS304/316L/aluminum, MTC cert & batch traceability included
CleanlinessFingerprint/scratch-free protocol, passivation/electropolish, A-side grading
ChamberWeld-chamber deformation control, leak test
Best for · semiconductor frames & chambers, medical instrument housings, cleanroom equipment, precision instrument racks
